Double Flange Differential Pressure Transmitter Capacitive Pressure Transducer Sensor 4mA

Name: Double Flange Differential Pressure Transmitter Capacitive Pressure Transducer Sensor 4mA
Brand: Yunyi
Price: 350 USD

China Double Flange Differential Pressure Transmitter Capacitive Pressure Transducer Sensor 4mA wholesale

Brand Name : Yunyi

Model Number : UC800L2

Certification : CE

Place of Origin : China

MOQ : 1

Price : 350~500USD/PCS

Payment Terms : T/T, Western Union

Supply Ability : 100pcs per week

Delivery Time : 10 work days

Packaging Details : Carton Packaging

Process Thread : 1/4NPT, 1/2NPT, M20*1.5

Output : 4-20mA

Pressure Range : 0-10MPa

Material : SS304

Power Supply : 12~36VDC

Application : Oil, Air, Gas, Water

Electrical Connection : M20*1.5

Warranty : 12 Months

Contact Now

Double Flange Differential Pressure Transmitter 4-20mA RS-485 Capacitive Pressure Transducer Sensor

Description Single Flange Differential Pressure Transmitter

UC800 Project Special Pressure Transmitter is the result of a combination of self-developed anti-jamming, high stability digital circuits and the introduction of foreign Single crystal resonant silicon sensor technology. Its performance much better than our domestic metal capacitive sensor technology transmitter, and main show in the field zero stability and long-term operation stability, and rapid response.

Specification Single Flange Differential Pressure Transmitter

Range digital smart differential pressure transmitter

Range code	Range		Measuring range
Range code	Min.	Max.	Measuring range
4	0.374KPa	37.4KPa	-37.4~37.4KPa
5	1.868KPa	186.8KPa	-186.8~186.8KPa
6	6.9KPa	690KPa	-690~690KPa
7	20.68KPa	2068KPa	-2068~2068KPa

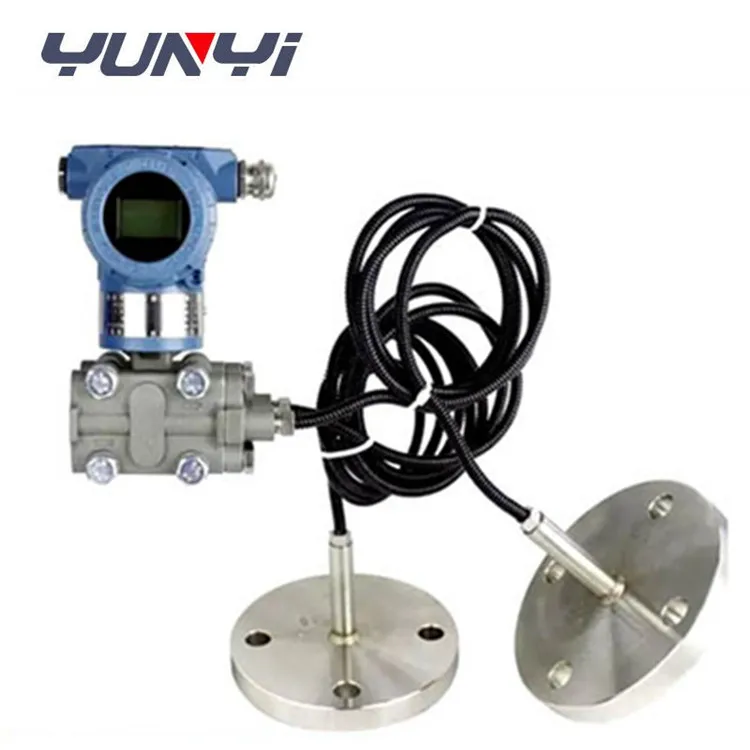

Detailed Picture Single Flange Differential Pressure Transmitter

Double Flange Differential Pressure Transmitter Capacitive Pressure Transducer Sensor 4mA

Applications Single Flange Differential Pressure Transmitter

Compatible with 316LSS,noncorrosive liquids.
Shipping and aviation industry.
Hydraulic pressure and pneumatic control system
Apply in Petroleum industry, chemical industry, electric power, metallurgy, hydrology etc process control.

Features Single Flange Differential Pressure Transmitter

Single crystal resonant silicon sensor technology
Super performance, use to measure pressure, differential pressure and temperature..
Accuracy: ±0.075%~±0.1%F.S/±0.2%F.S
Stability: ≤0.2%
Standard 4~20mA,RS-485 communication interface
Support upgrade of basic scene control technique

Little temperature effect

Little static effect

Overload can reach 2 times
